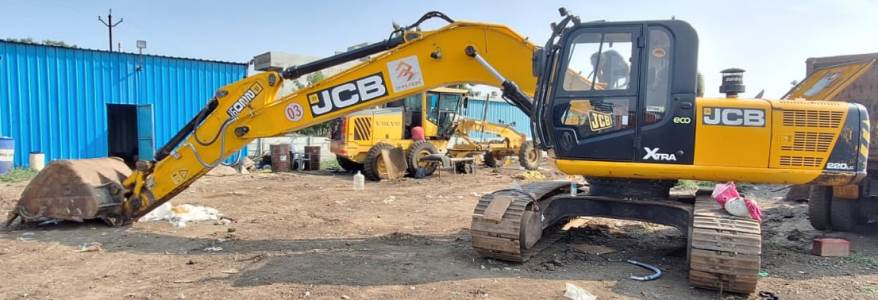

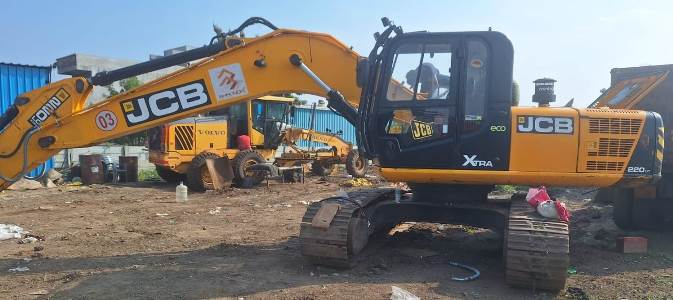

JS220 Designed and developed using our Efficient Design philosophy, the JS220 is an 22-tonne tracked excavator that’s equipped with a host of efficiency, performance, comfort and safety innovations.

JCB’s new DIESELMAX engines use up to 10% less fuel than our Tier 3 units, saving you money. This is partly due to the fact that DIESELMAX engines produce high torque at just 1500 –1600 rpm, making for improved fuel-efficient matching of the hydraulics.

The high-strength undercarriage of a JS220 is of a fully welded X-frame construction for long-term durability even in the most demanding applications, and the rigid upper frame provides maximum durability and support.

• The reinforced boom and dipper is made of high tensile strength steel, with three-piece wrapper plates and cast ends for strength and durability.
• Robust cast ends and pivot bosses make the new boom and dipper on this tracked excavator extremely strong.
• The turret on JS220 is welded to both the upper and lower undercarriage frames, and stiff, durable doors provide further strength.

Model                             JCB Dieselmax 444 N1 GBII, EU Stage II, EPA Tier 2 compliant.
Type                                Water cooled, 4-stroke, 4-cylinder in-line, natural aspiration, rotary mechanical fuel injection pump, diesel.
Rated power (net)        55.3 kW (74.2 hp) at 2200 rpm
Torque                            305 Nm @1200 rpm
Piston displacement    4.4 litres
Air filtration                  Pre-filter and main filter (dry element with secondary safety element) and in-cab warning indicator.
Starting system             24 volt
Batteries                         2 x 12 volt
Alternator                      24 volt, 55 ampere
