Description

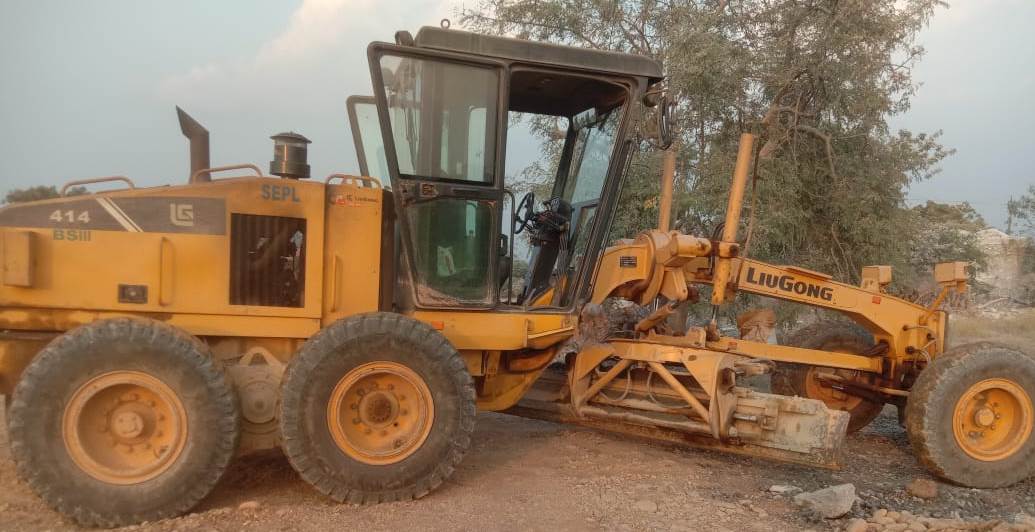

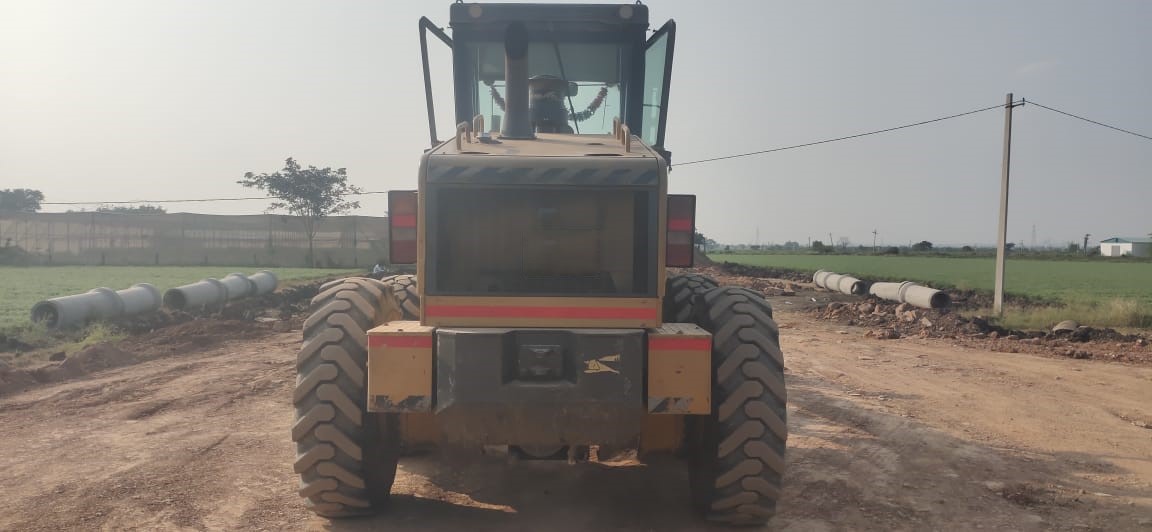

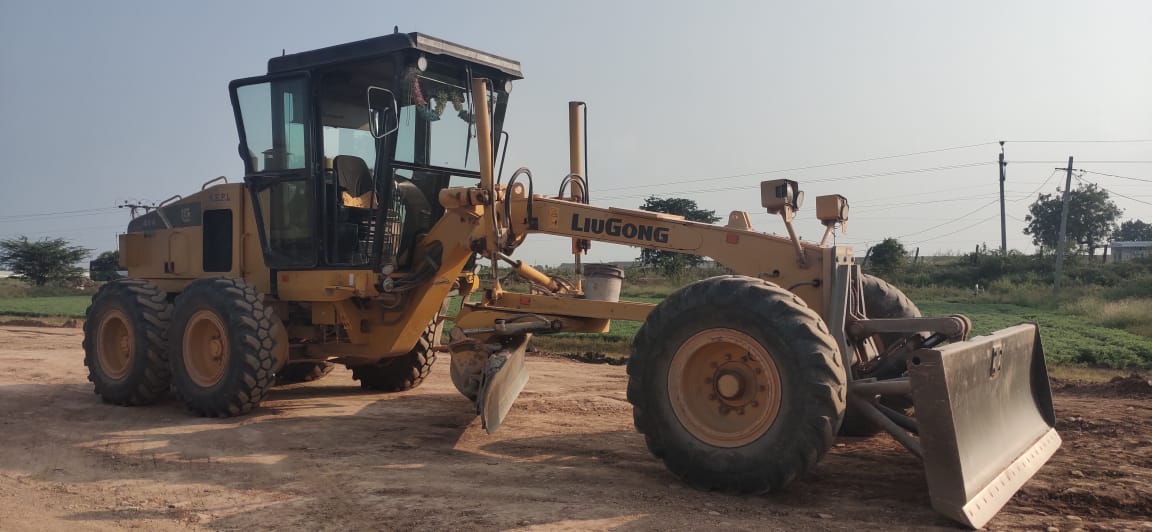

LiuGong CLG 414 comes with Engine CUMMINS INDIA which has Rated Power 112 kW (150 hp) @ 2200 rpm and has Blade Width 3,660 mm. It’s Maximum Speed 41 km/h and Draw Bar Pull 65 kN with Operating Weight 12,400 kg and Cabin Air Conditioned.
| Engine Power | 150 hp |
| Operating Weight | 12400 kg |
| Min Turning Radius | 7200 mm |
| Top Speed- Forward | 41 km / hr |
| Top Speed- Reverse | 29 km / hr |
| Blade Height | 610 mm |
| Fuel Tank Capacity | 250 L |
| Overall Height | 3370 mm |
| Steering Range/ Angle | ±45° |
| Front Axle Weight | 3250 kg |
| Rear Axle Weight | 9150 kg |
| Blade Thickness | 19 mm |
| Max Lift Above Ground | 460 mm |
| Max Drop Below Ground | 555 mm |
| Blade Side Shift- Right | 650 mm |
| Blade Side Shift- Left | 520 mm |
| Maximum Blade Angle | 90° |
| Overall Length | 8340 mm |
| Tyre Size | 13 x 24 -12 PR |
| Engine Model | Cummins 6BTAA5.9 |
Features
- Centralised Auto Lubrication System
- Automatic Leveling System
- Automatic Fire Suppression System
Applications
- Land Grading
- Road Construction
