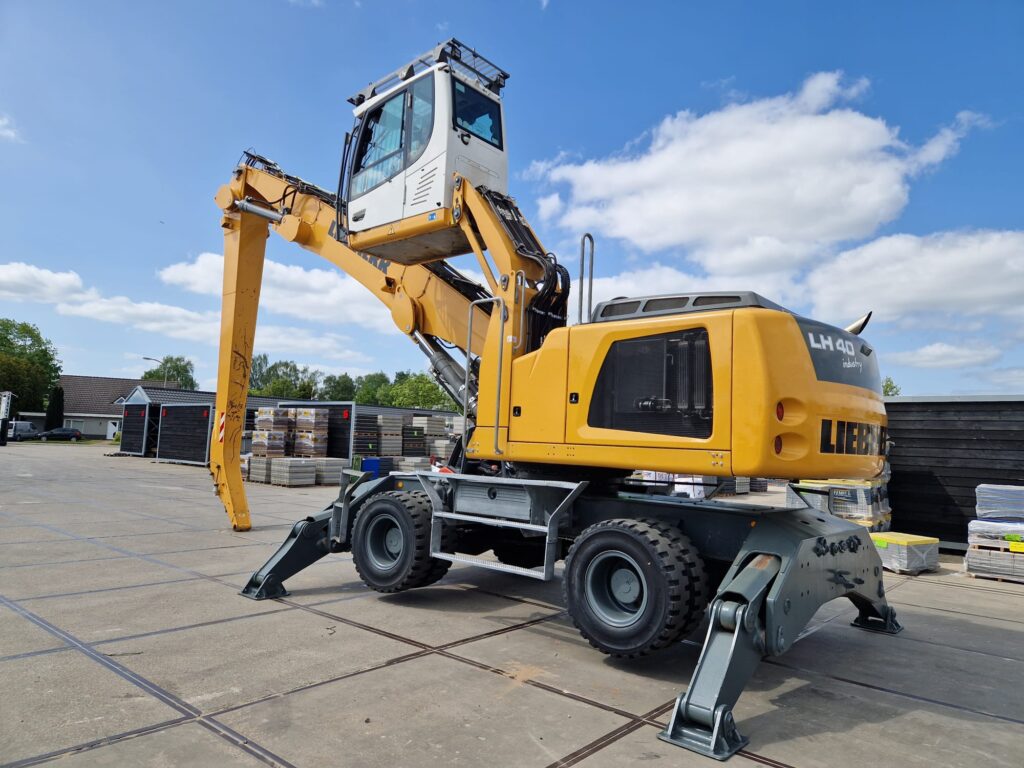

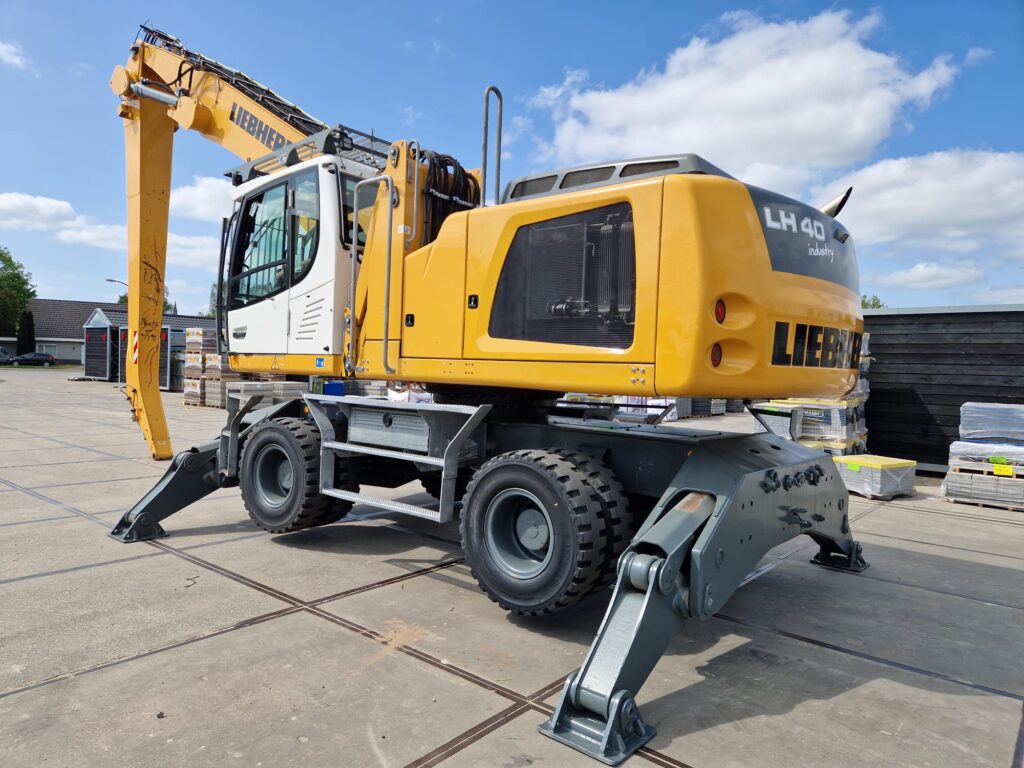

LH 40 M Port Litronic Material Handler’s Operating Weight 41,100 – 45,500 kg *  which has Engine of 155 kW/ 211 HP Stage V, Stage IIIA (compliant) and System Performance 233 kW

Equipment

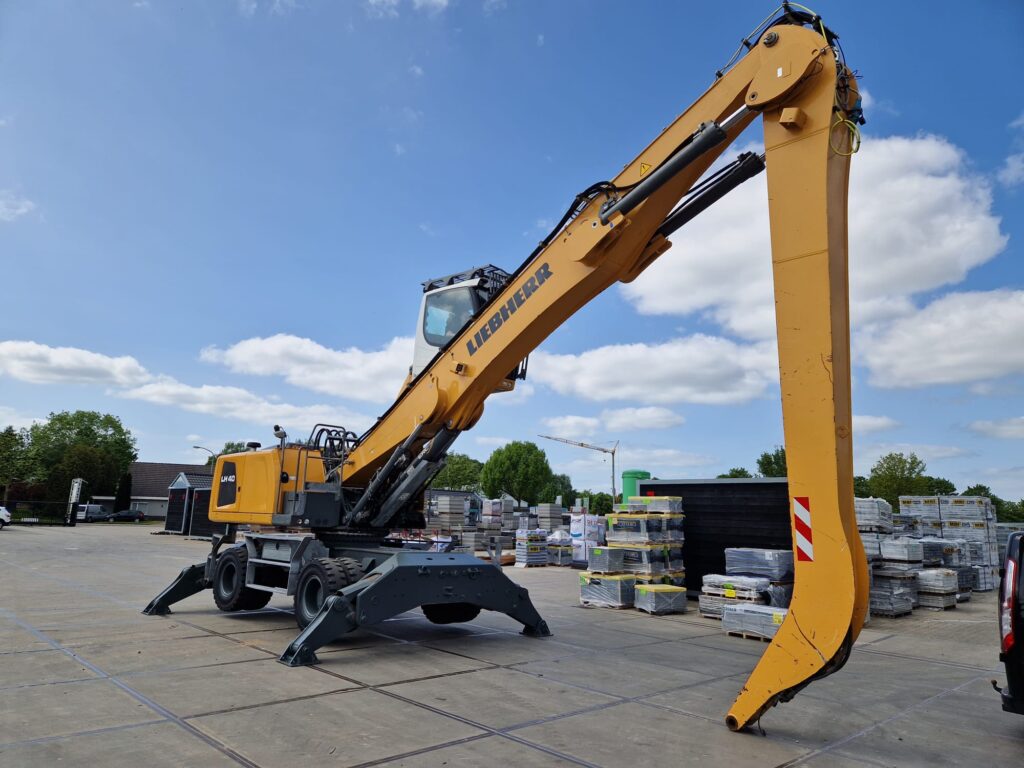

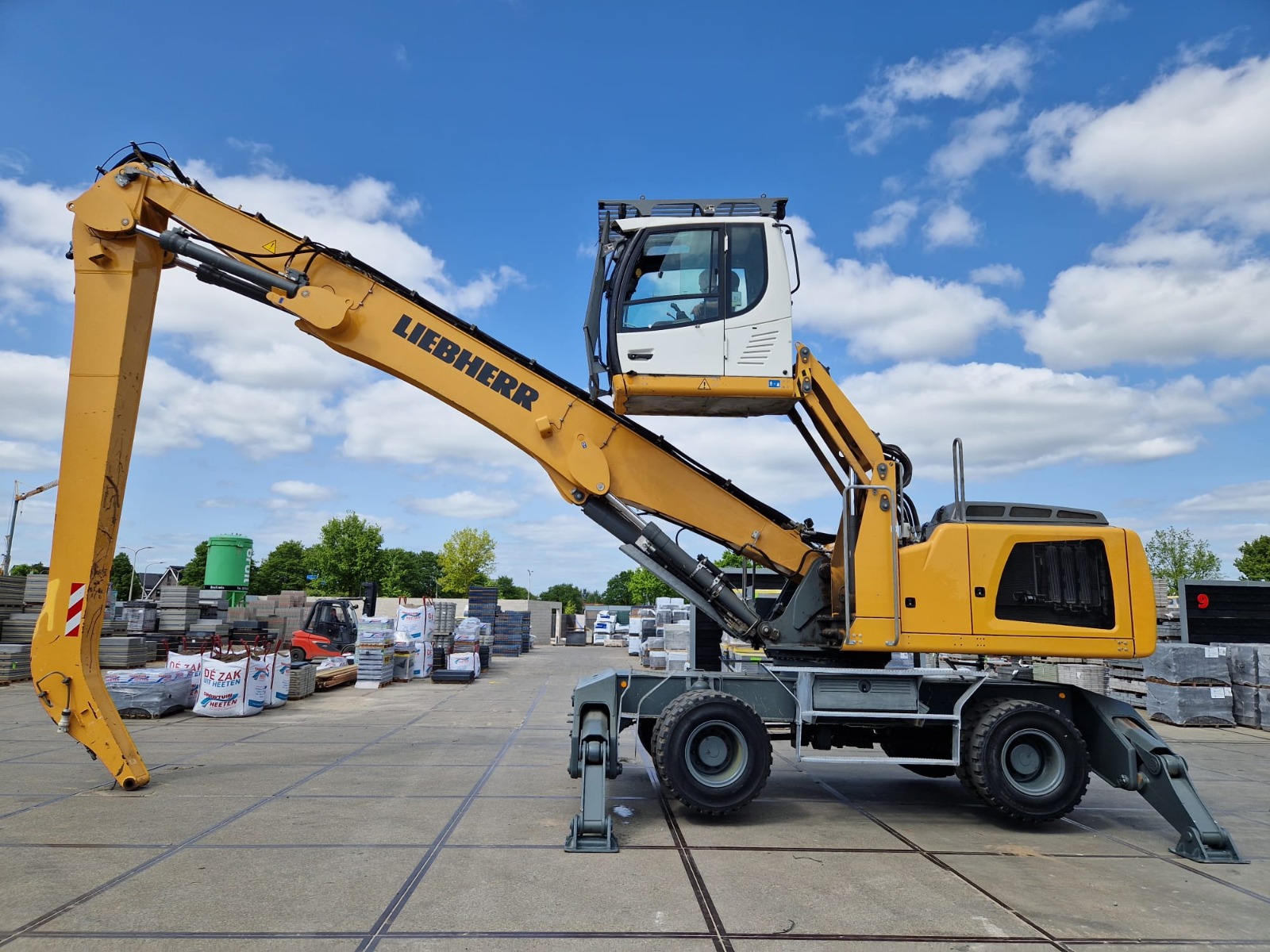

• High payloads and long reaches of up to 19 m thanks to enhanced weight design for increased handling capacity
• The weight-optimised equipment, ERC, hoist and stick cylinders are perfectly tailored to the conditions of use

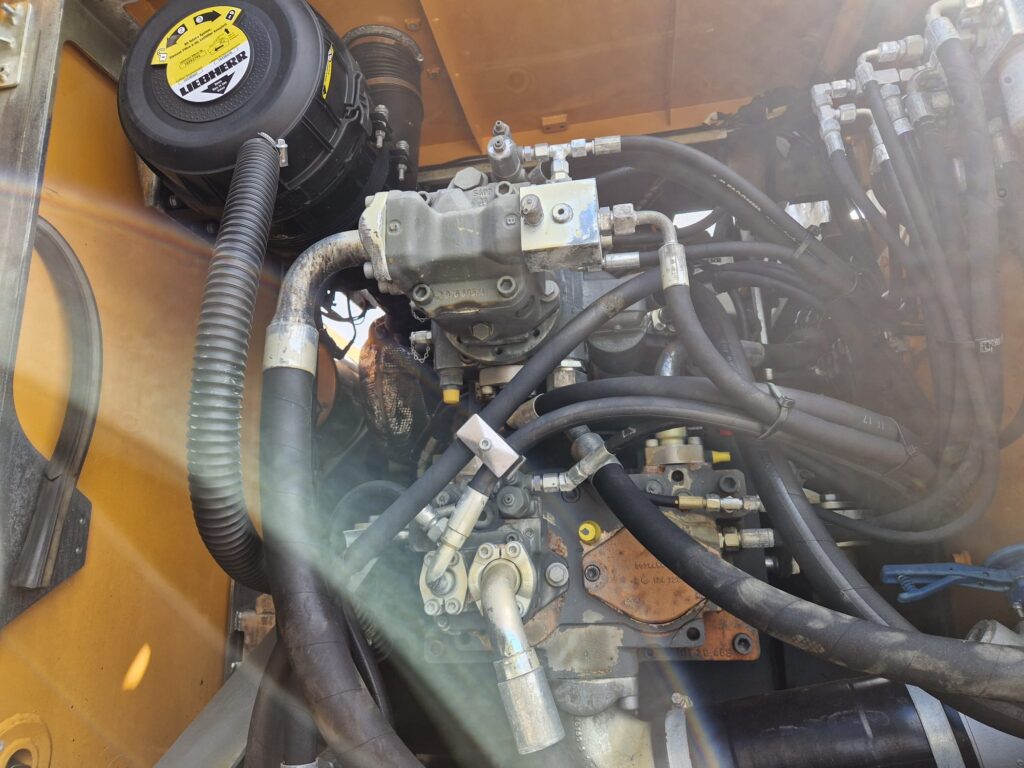

Hydraulic System
• Work functions are electrically piloted for optimum control
• Load-Sensing-System LUDV enables maximum efficiency
• Huge system performance due to the energy recovery system ERC

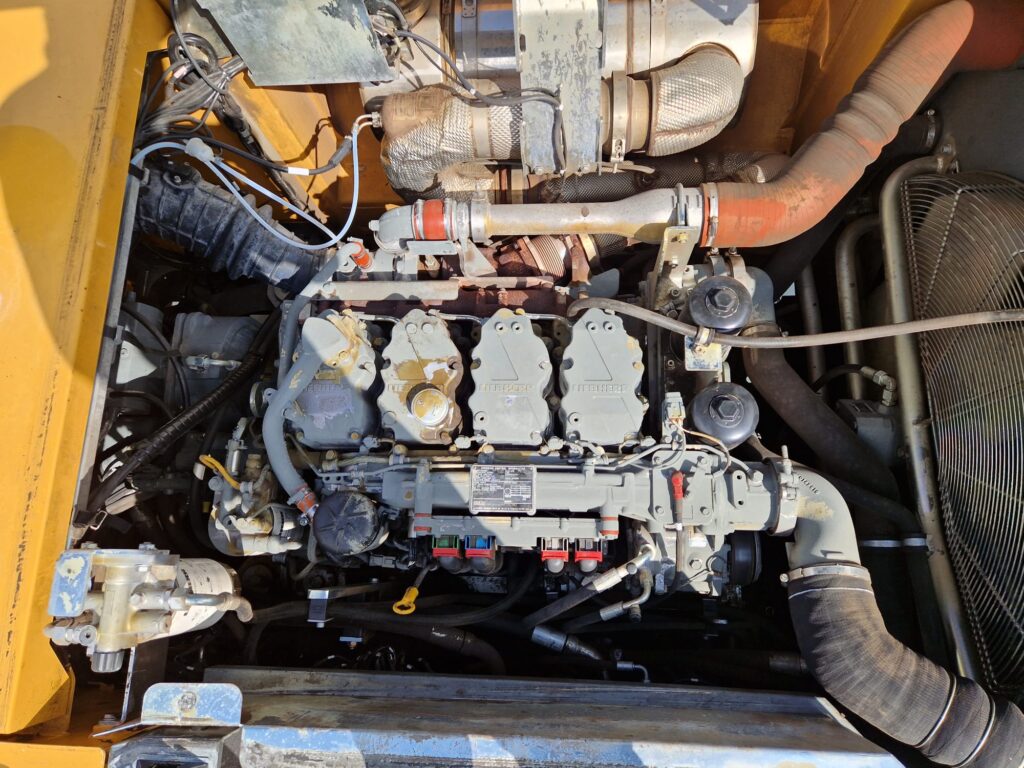

Diesel Engine
Rating per ISO 9249   155 kW (211 HP) at 1,800 RPM
Model                             Liebherr D934
Type                               4 cylinder in-line Bore/Stroke 122/150 mm Displacement 7.0 l
Engine operation        4-stroke diesel Common-Rail turbo-charged and after-cooled reduced emissions
Air cleaner                    dry-type air cleaner with pre-cleaner, primary and safety elements
Engine idling               sensor controlled
Electrical system         Voltage 24 V
Batteries                        2 x 180 Ah/12 V
Alternator                     three-phase current 28 V/140 A
Stage V
Harmful emissions values         according to regulation (EU) 2016/1628
Emission control                         Liebherr-SCRFilter technology
Fuel tank                                       453 l
Urea tank                                       65 l
Stage IIIA (compliant)
Harmful emissions values           in accordance with ECE-R.96 Power Band H
Fuel tank                                         453
