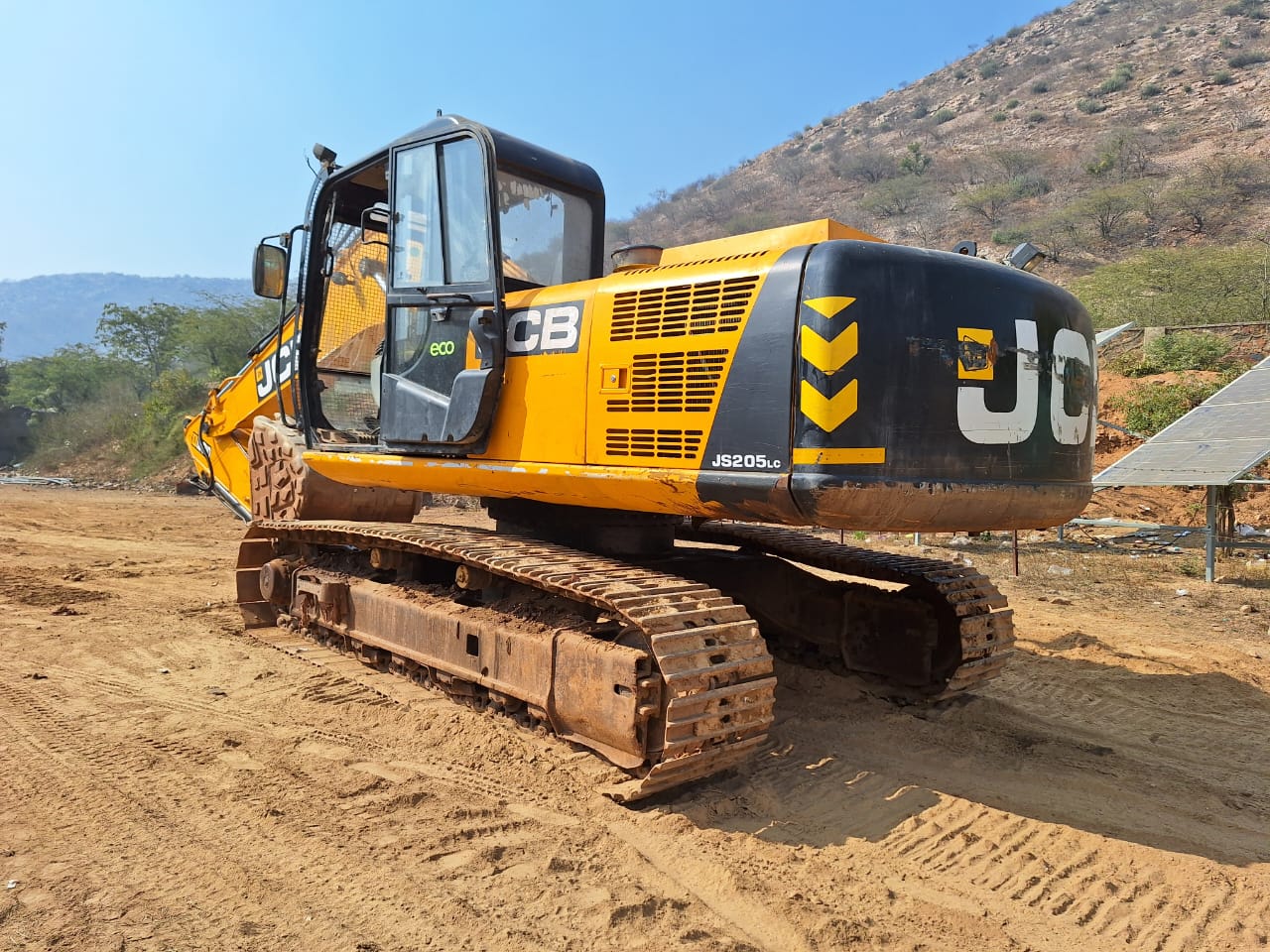

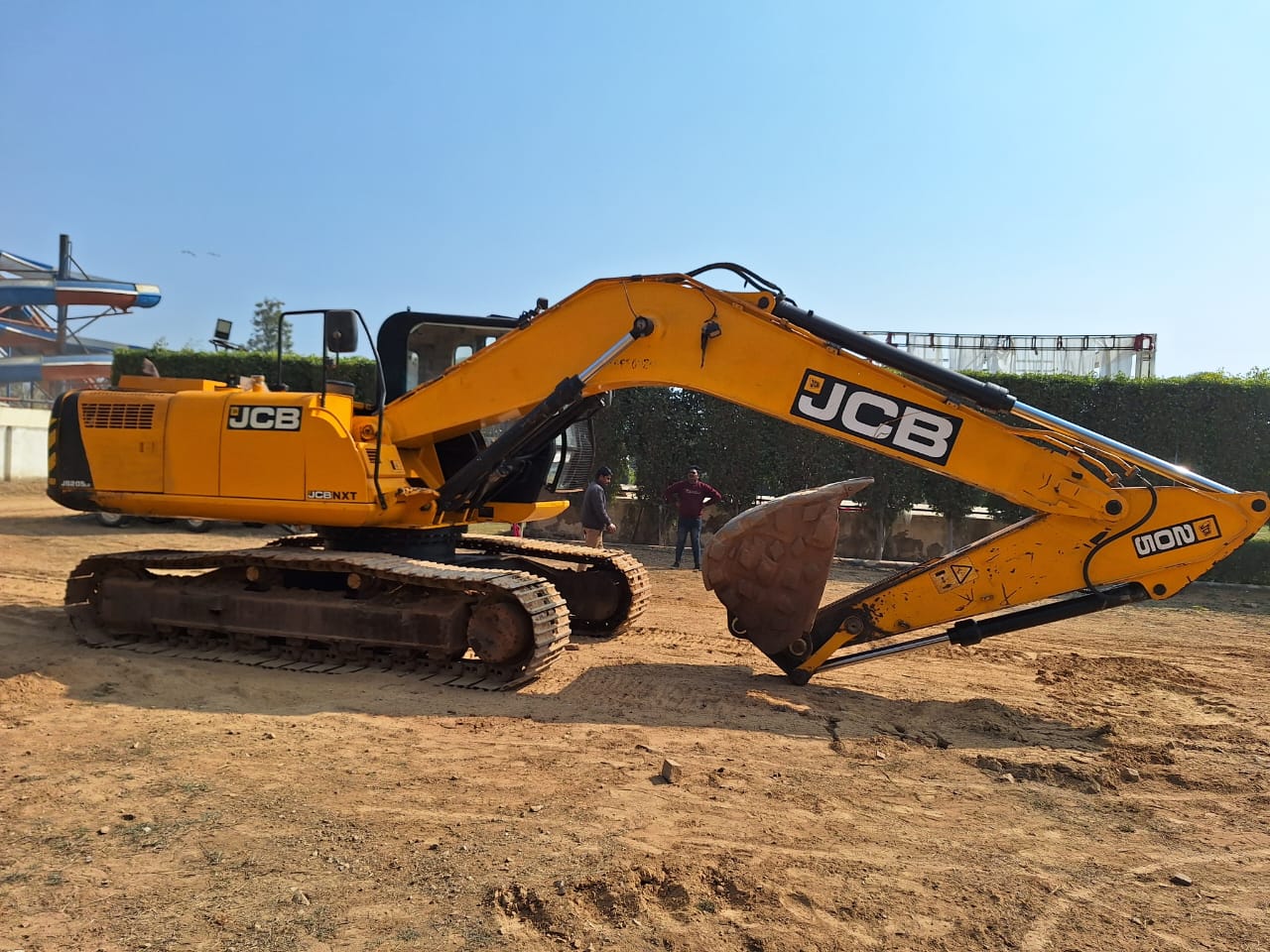

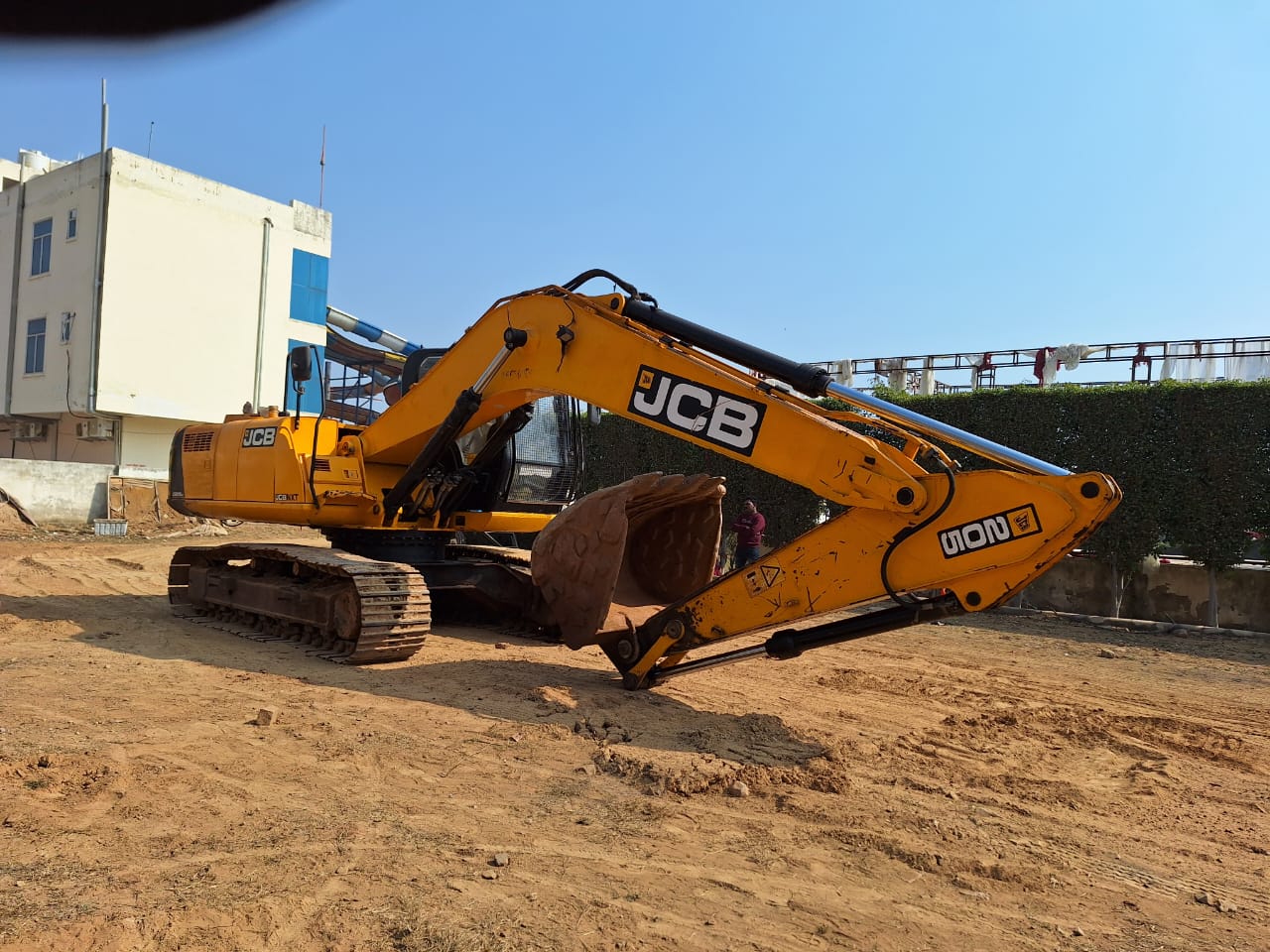

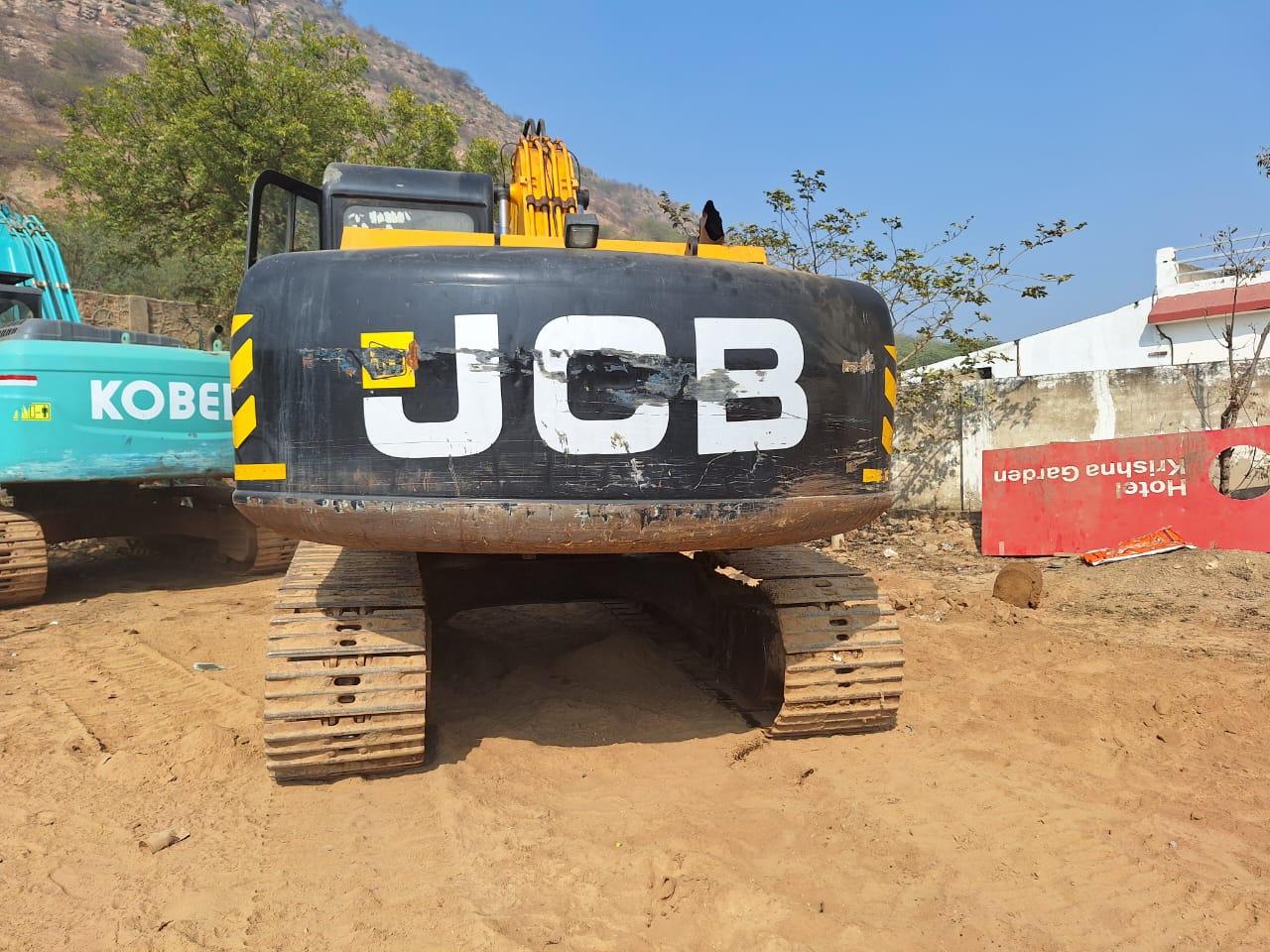

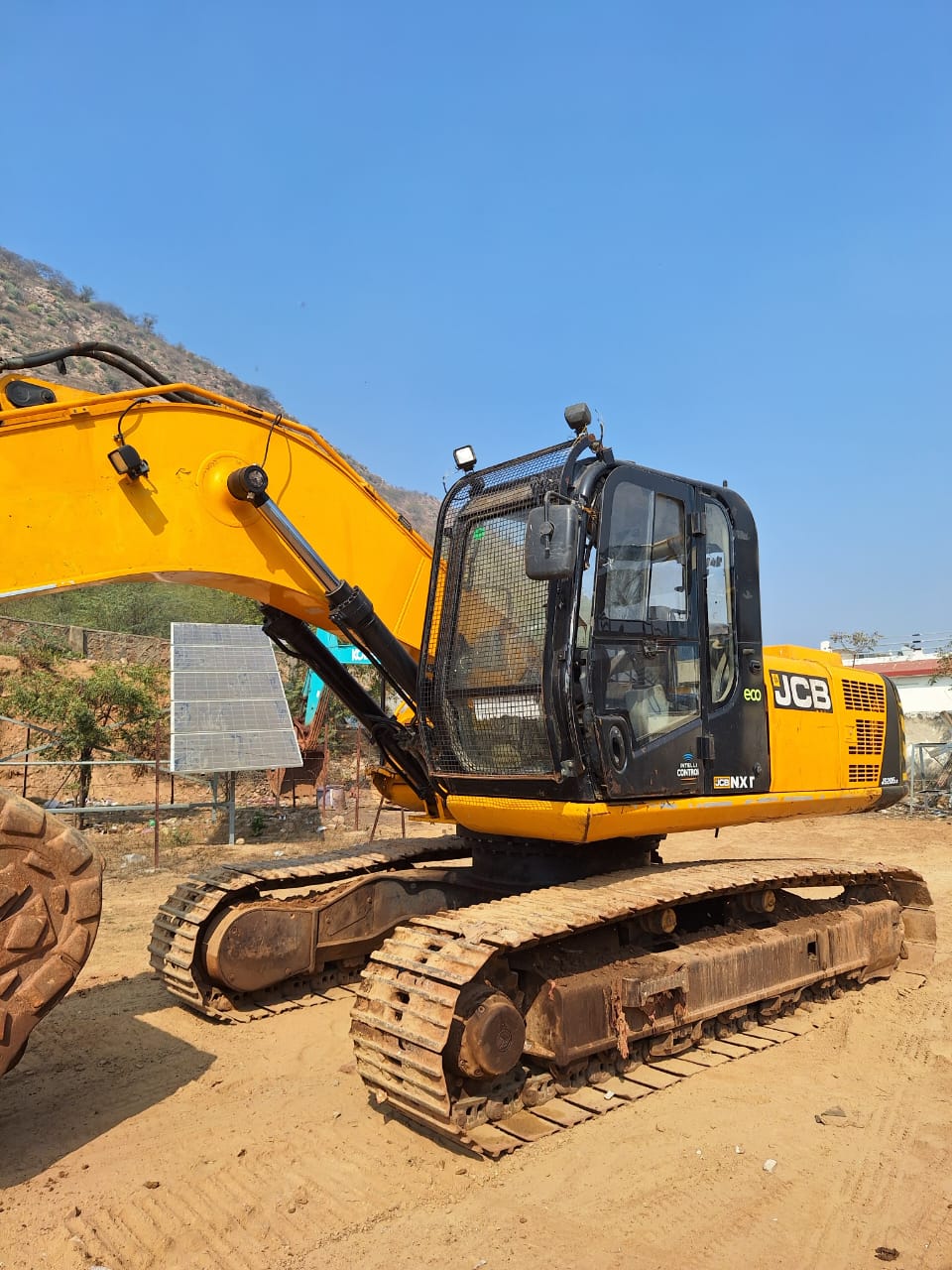

JCB NXT 205 has Operating Weight of 20000 Kg with Max. Engine power Hp- 140. It’s Maximum Bucket Capacity 0.80-1.02 cum

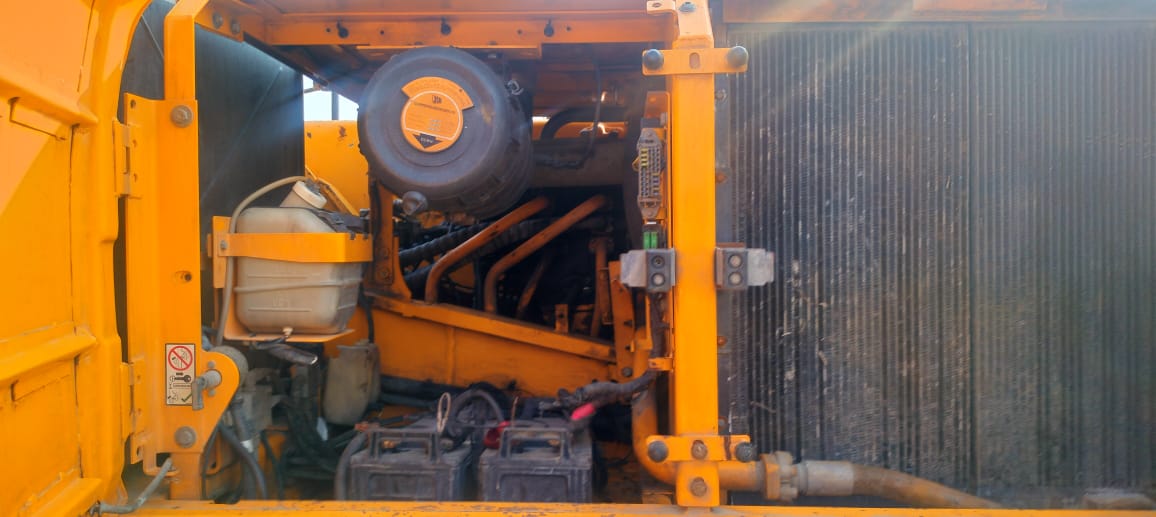

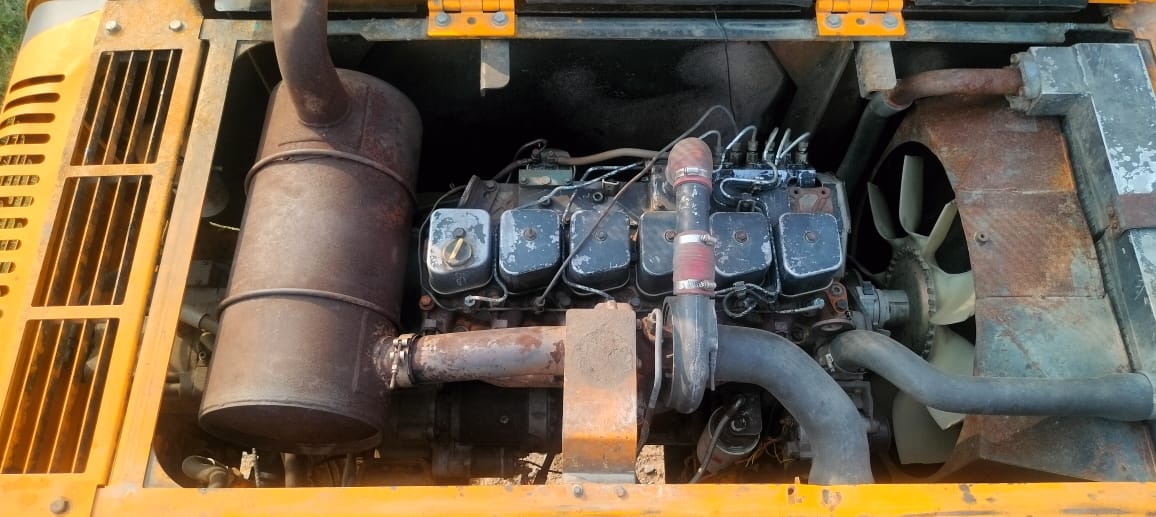

ENGINE
Model                                 CUMMINS 6BT 5.9C
Type                                    Water Cooled, 4 stroke, 6 -cylinder in-line, direct injection, turbocharged diesel
Nett power                         Gross power: 104 kW (140 hp)
Piston displacement        5.88 litres
Air filtration                      Dry element with secondary safety element plus air pre-cleaner
Cooling                               Water cooled via large capacity radiator
Starting system                 24 volt
Alternator                           24 V, 75 amp, Heavy duty

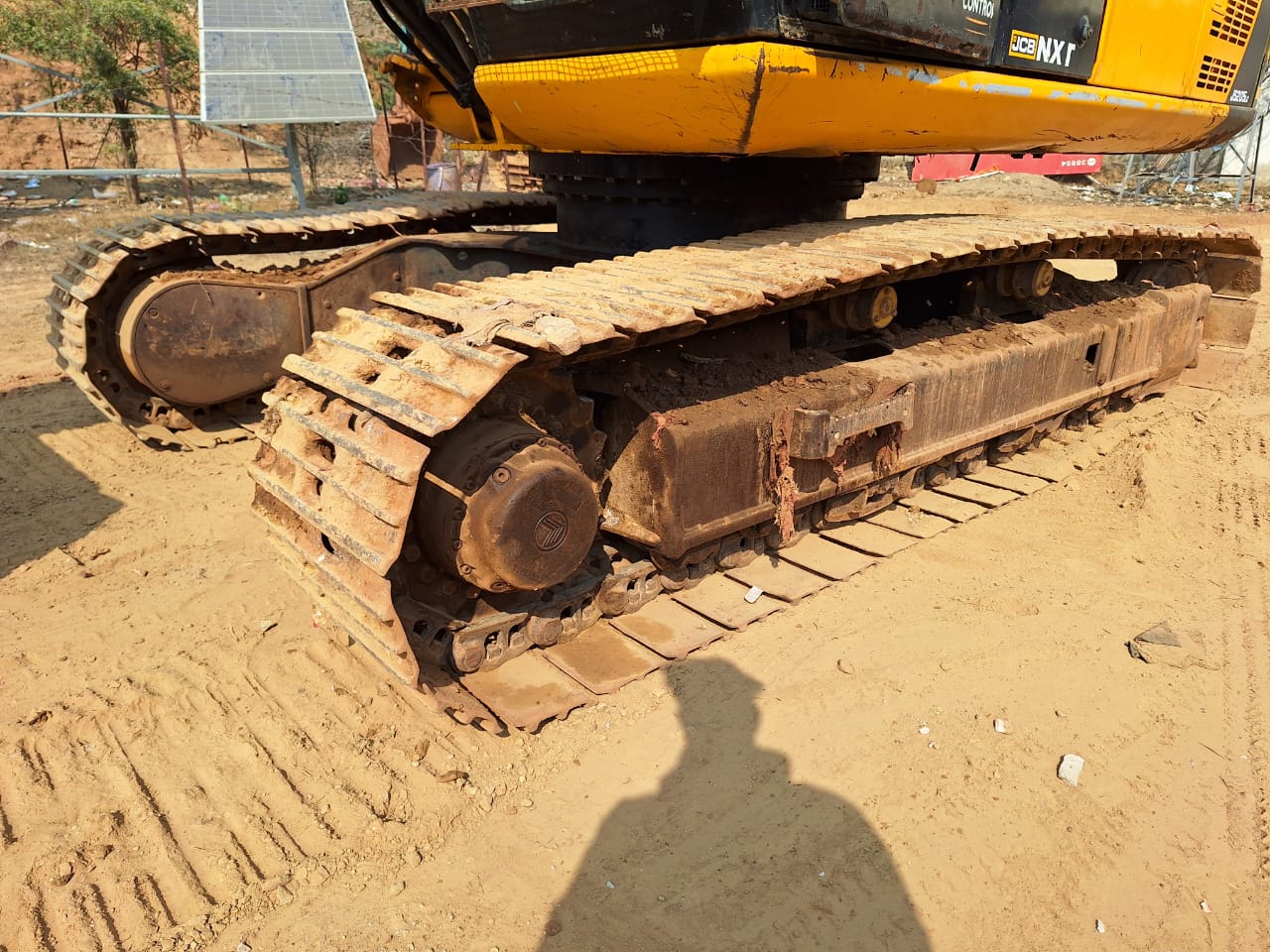

UNDERCARRIAGE
Track shoe                            600 / 800mm
Upper & lower rollers         Heat treated, sealed and lubricated
Track adjustment                Grease cylinder type
Track idler                             Sealed and lubricated, with spring enhanced recoil
No. of track guides               2 per side
No. of lower rollers              8 Per side (JS205LC), 7 per side (JS205SC)
No. of upper rollers             2 per side
No. of track shoes                49 per side (JS205LC), 46 per side (JS205SC)
