Description

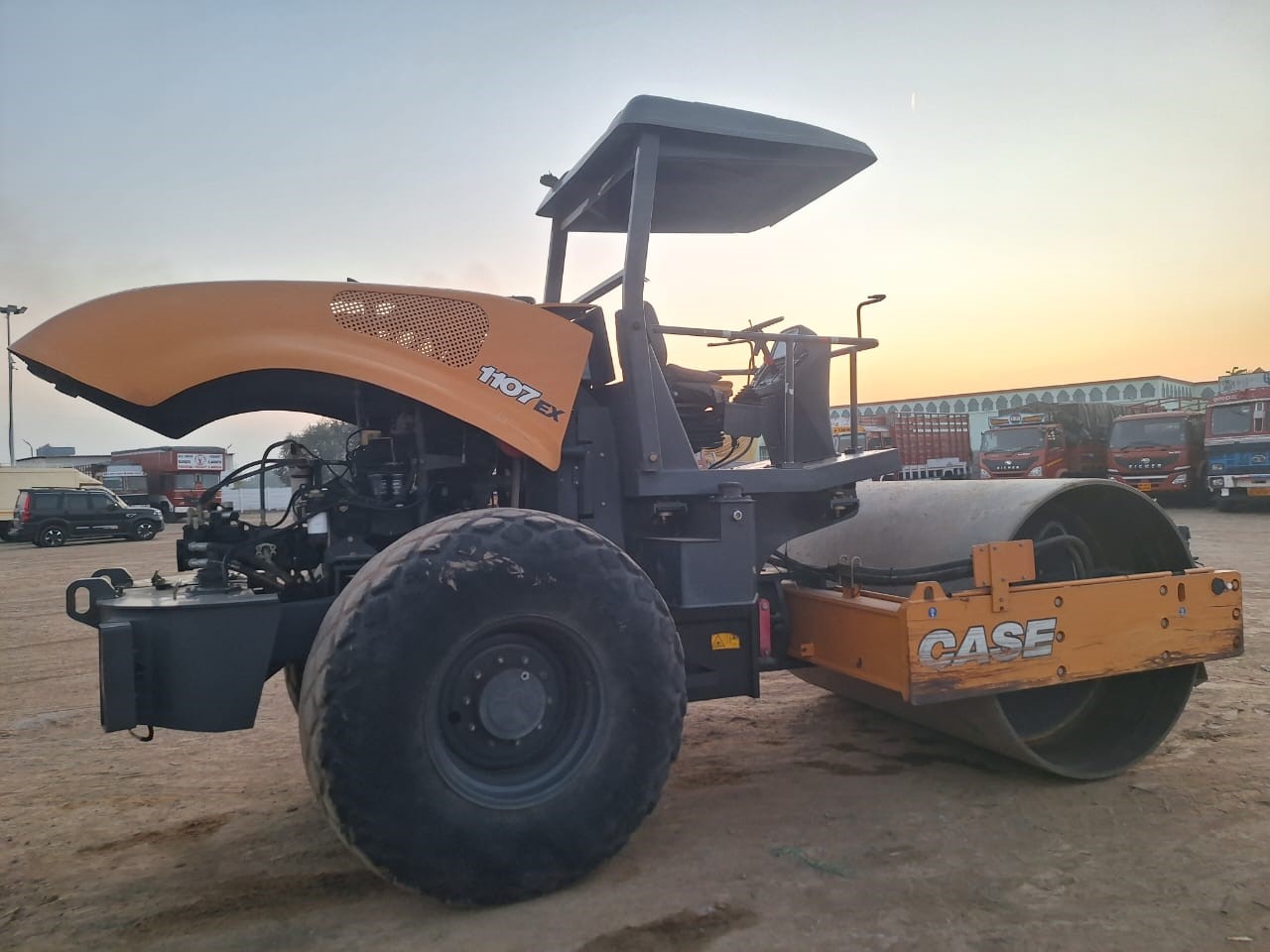

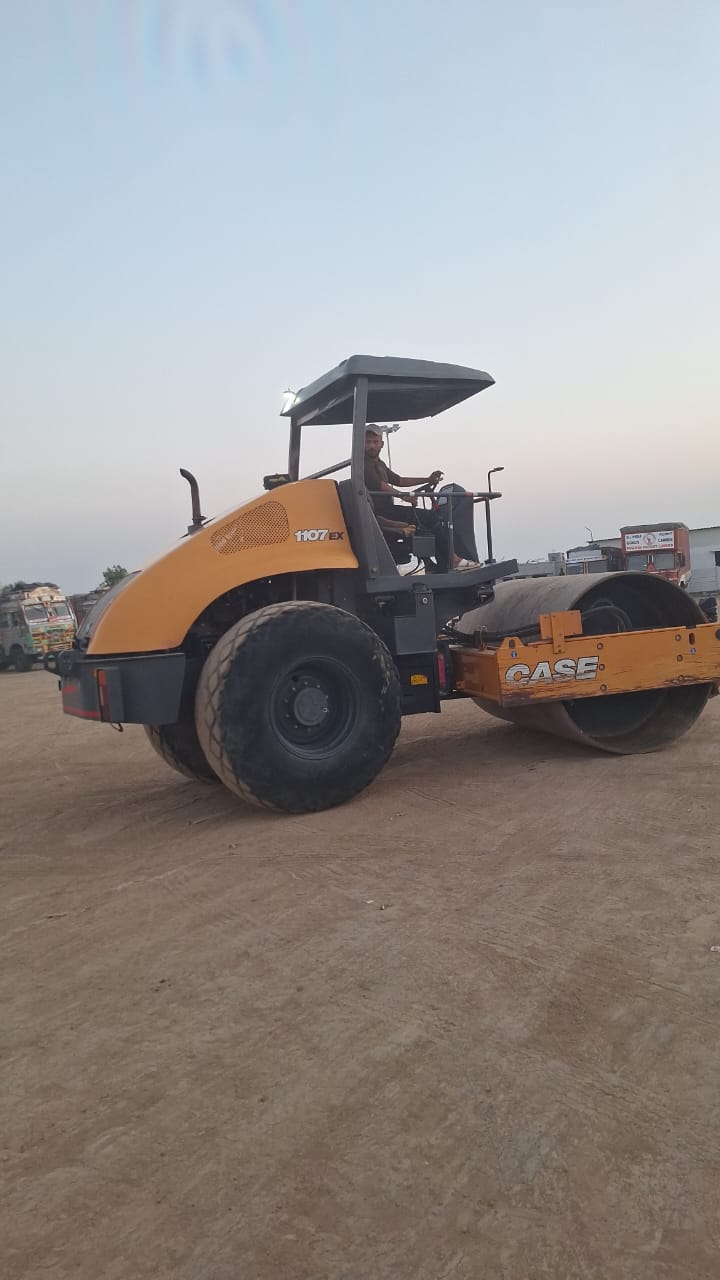

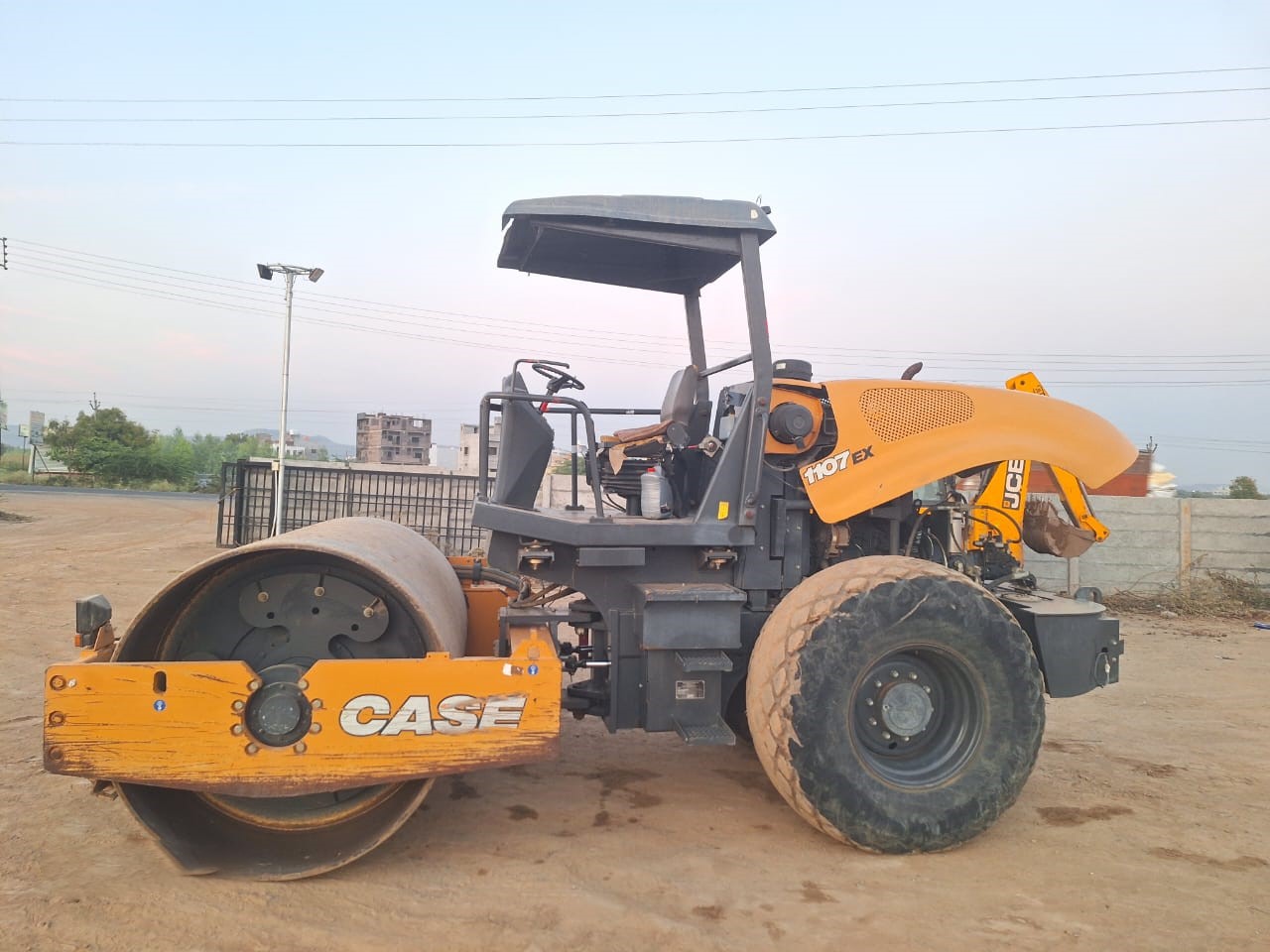

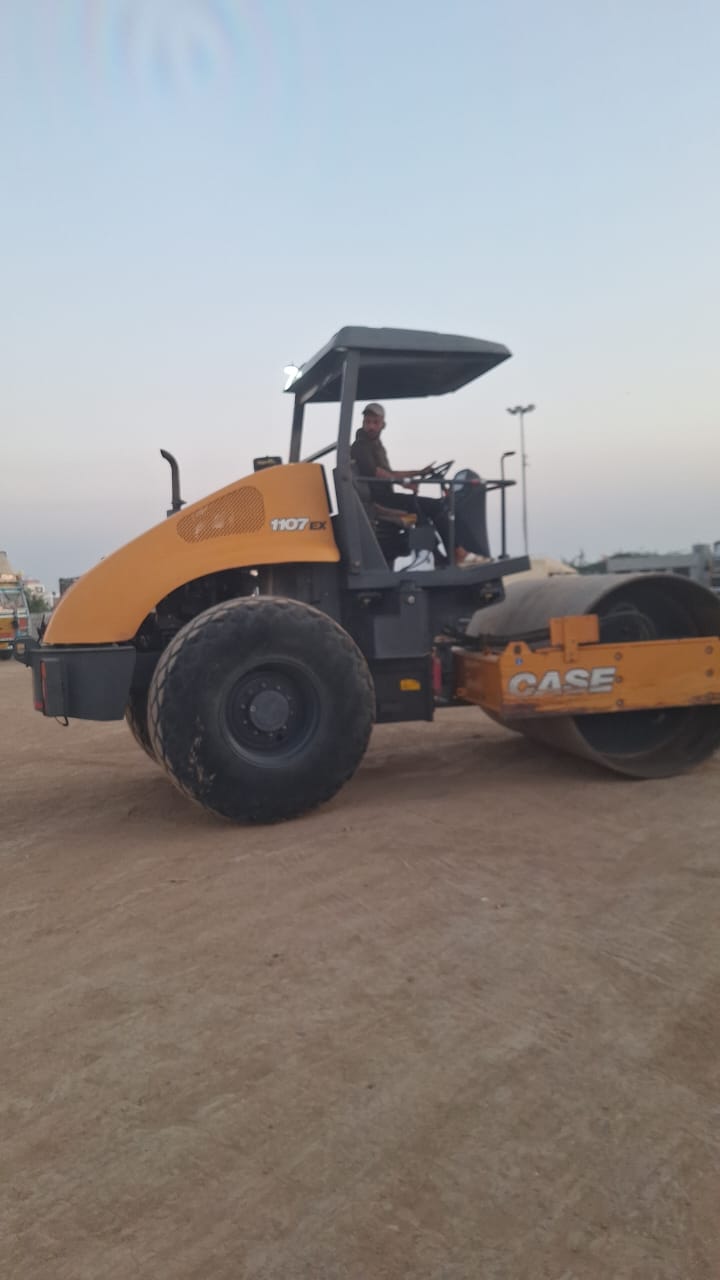

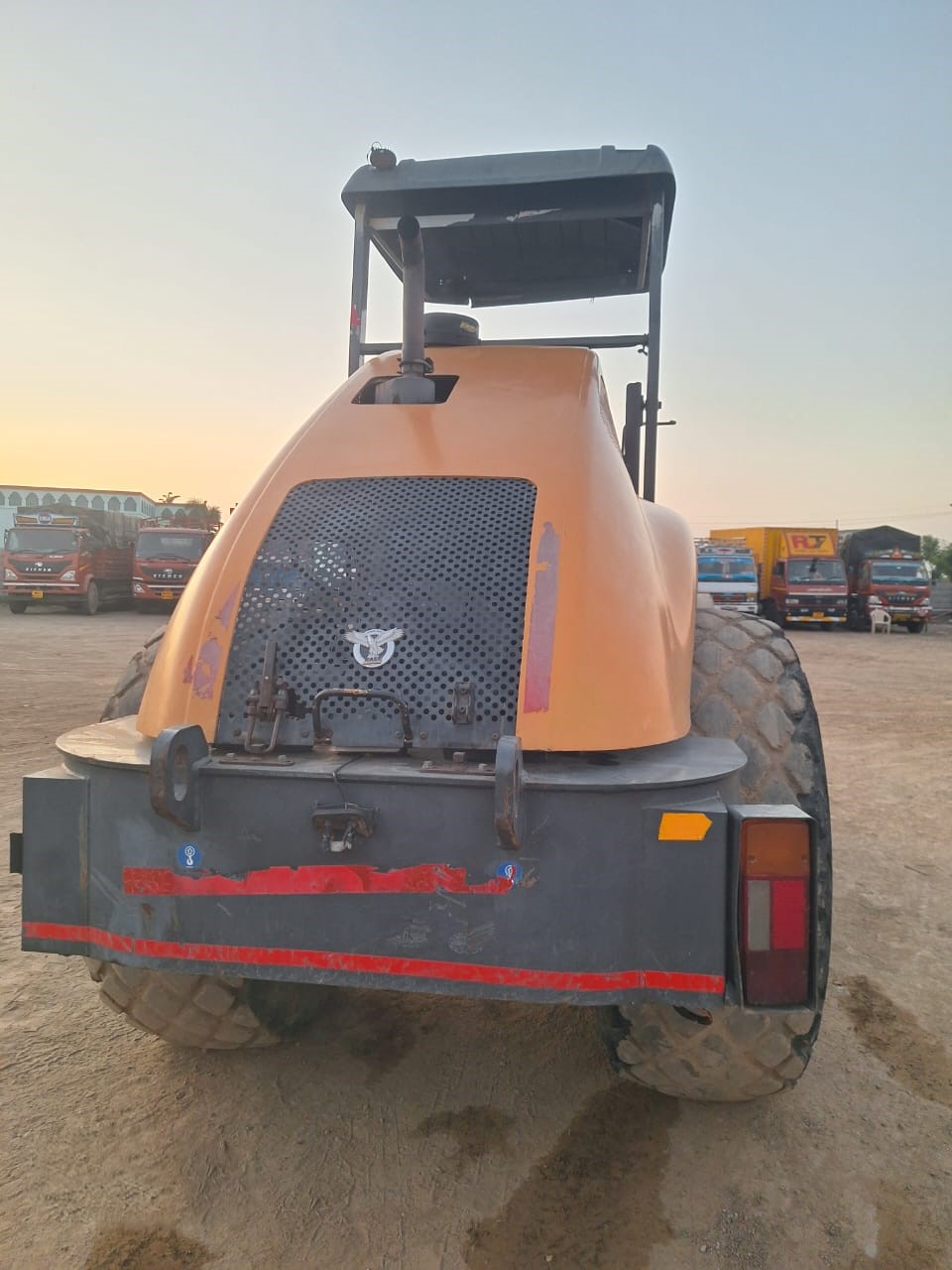

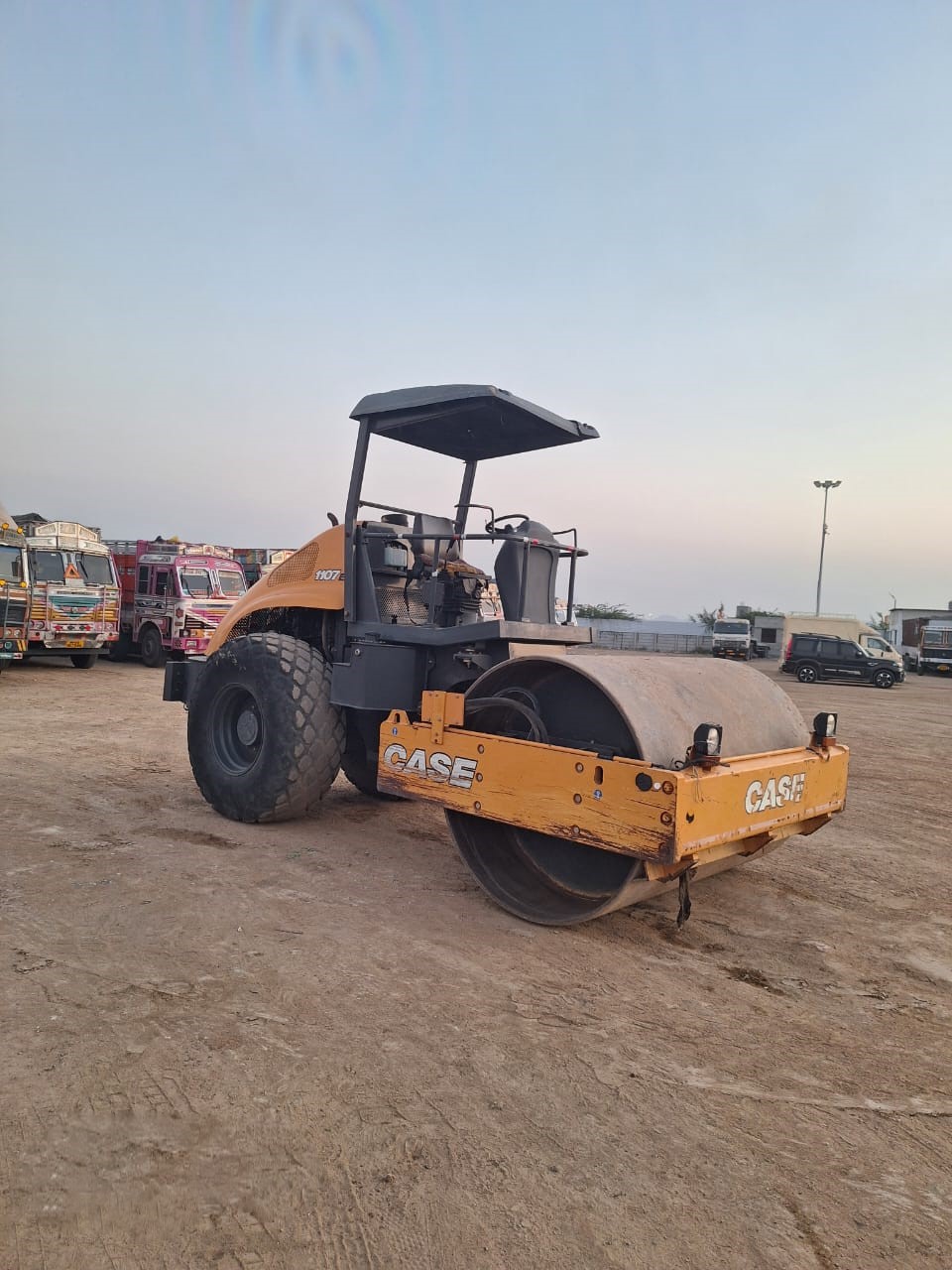

Case 1107Ex comes with AL Brand Engine whose Model is H4 and has 4 Cylinders. It’s Displacement (L)3.83 and with Turbocharged with Internal EGR Air Intake. It has Electronic Fuel Injection, Common Rail Direct Injection and Emission level of Tier 4B / India CEV Stage-IV. It produces Max Gross Power (kW/hp)@2200rpm (ISO 14396)73.7 / 100 and Max Gross Torque (Nm) @1500rpm (ISO 14396)450.
Tyre Size 23.1-26 8PR
Operating Weight (kg) 10900 / 11400
DIMENSIONS
Horizontal Distance From Drum Center to Tyre Center (m) 3.003
Overall Width of Machine (m) 2.32
Rear Overhang (m) 1.56
Diameter of Rear Tyres (m) 1.38

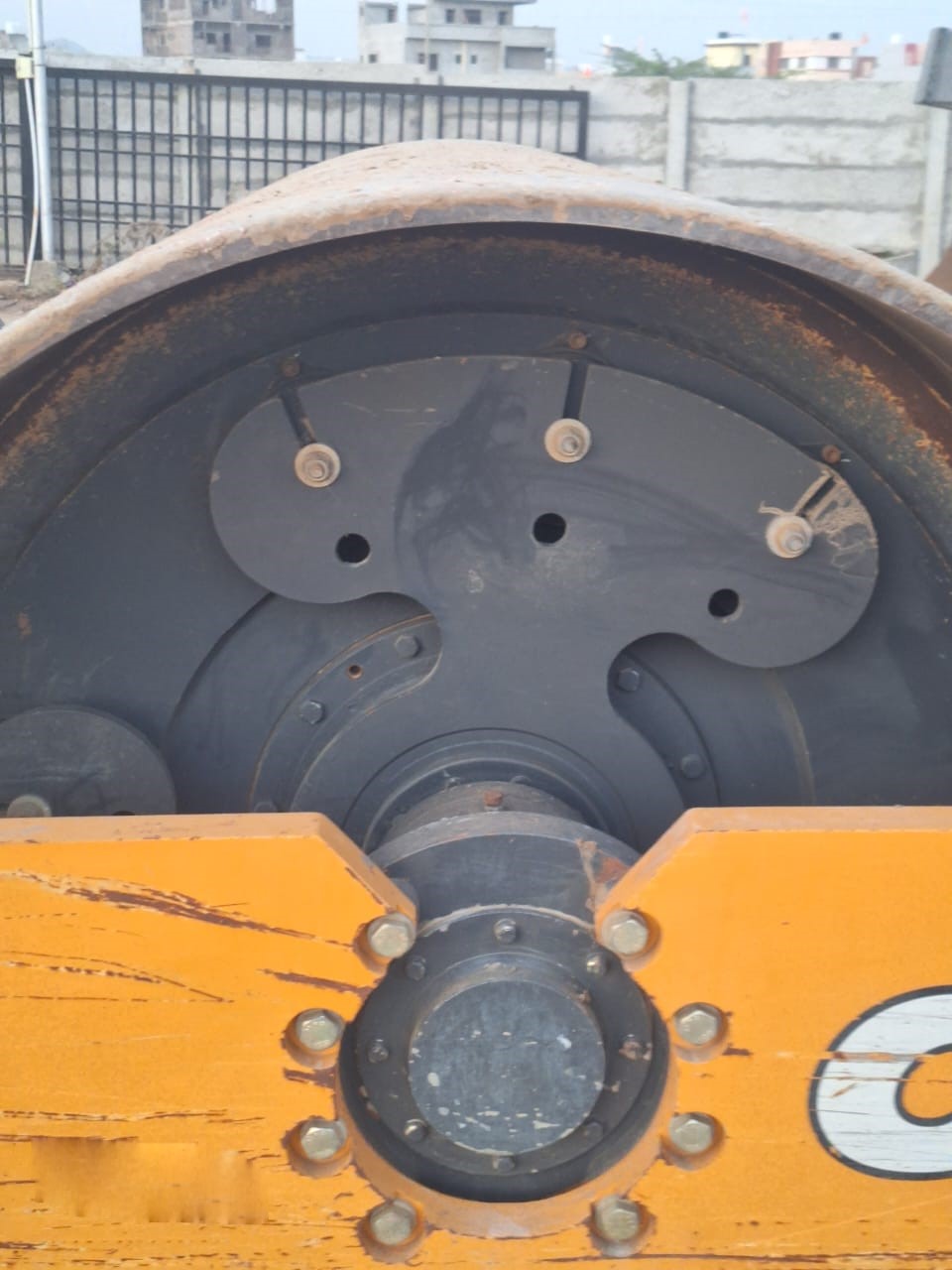

Diameter of Drum (m) 1.5
Overall Height of Machine – without / with Folded Canopy (m) 3.37 / 2.99
Ground Clearance (m) 0.362
Overall Length of Machine (m) 5.51
Side Overhang (m) 0.087
Drum Shell Thickness 25 mm (0.025 m)
Overall Width of Drum (m) 2.15
Rear Departure Angle (degree) 36
Front Departure Angle (degree) 35
